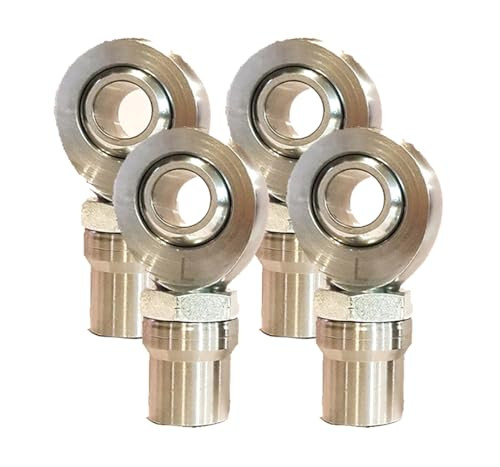

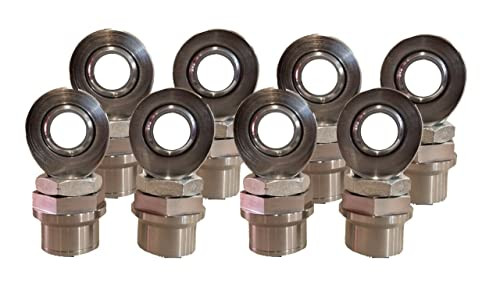

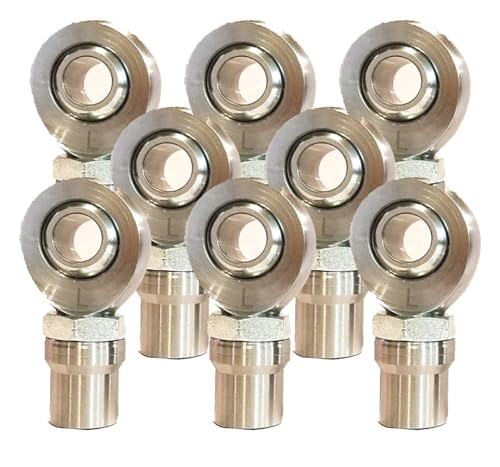

This 16-piece 1" Bore Heim Joint Kit is engineered for maximum strength and reliability in demanding off-road and industrial applications. It includes 8 right-hand and 8 left-hand Heim joints with 1.25"-12 threaded shanks, plus matching jam nuts and weld-in tube inserts designed for 1.50" ID DOM or Chromoly tubing.
Perfect for:
-
Mega truck steering setups
-
Long-travel 4-link suspensions
-
Radius arms, control arms, and drag links
-
Rock bouncers, Ultra4 rigs, and heavy-duty off-road vehicles
Matched LH and RH joints enable turnbuckle-style adjustments for fine-tuning geometry without removing links.
? What’s Included
-
(8) RH 1" Bore Heim Joints – 1.25"-12 Thread
-
(8) LH 1" Bore Heim Joints – 1.25"-12 Thread
-
(16) 1.25"-12 Jam Nuts (RH & LH)
-
(16) Weld-In Tube Inserts – Fits 1.50" ID Tubing
-
Finish: Zinc-Plated or Raw Steel (specify option)
? Specifications
-
Bore Size: 1"
-
Thread Size: 1.25"-12 (RH & LH)
-
Insert Fitment: 1.50" Inner Diameter Tubing
-
Material: Heat-Treated Steel or Chromoly
-
Finish: Zinc-Plated or Raw
-
Thread Direction: 8 Right-Hand & 8 Left-Hand
✅ Applications
-
Off-Road Suspension Systems
-
Mega Truck Steering Arms
-
Custom Control Arms & Drag Links
-
Rock Crawlers, Ultra4, and Buggies
-
Fabricated 4-Link and Radius Arm Setups
